Equipments
I created these sketches to meet specific needs:
1. Portable equipment for applying far-infrared light to bedridden people.
2. Equipment for applying far-infrared light to seated people.
3. Equipment for local laser application to people lying down or sitting.
2005 | INDUSTRIAL DESIGN
1. Portable Equipment for Far-Infrared Application
The purpose of this product was to apply far-infrared light to bedridden individuals. The remote control of time and intensity allows the patient to monitor progress, or it can be positioned laterally so that only the responsible professional has access to the information.
1.1. Details
-

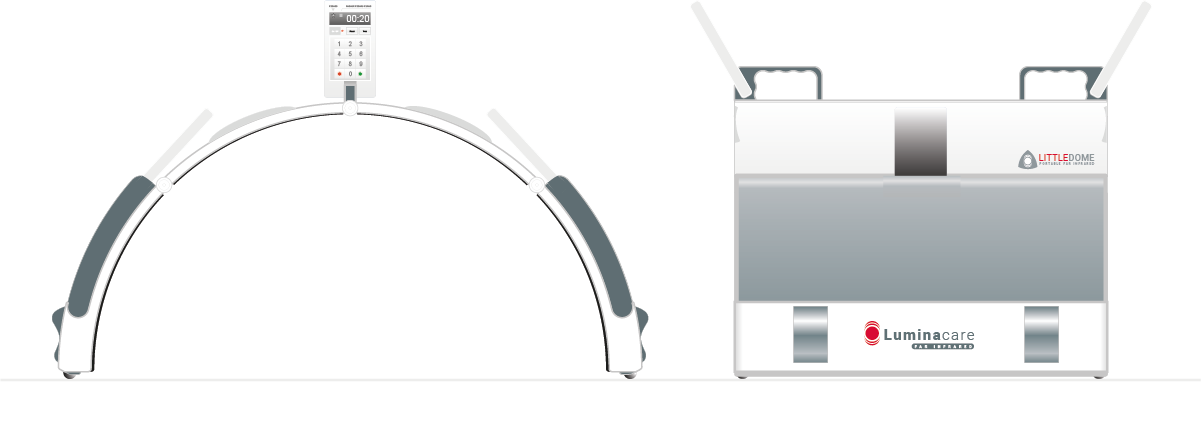

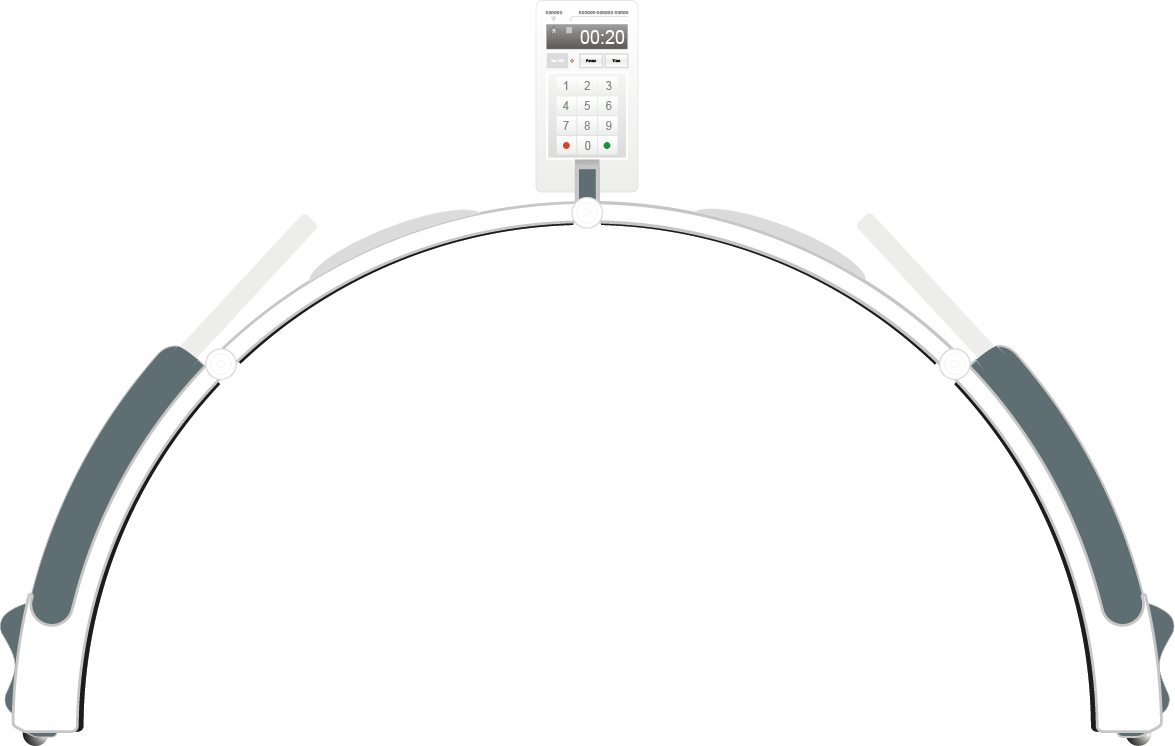

1. Relief for a person lying down (pull the device over your body - both sides).
2. Carrying handles (may be snap-on to reduce the volume of the folded device).
3. Retractable base to adjust the height of the device (3 or more adjustment levels).
- Simulation of possible positions for the temperature and time control (sides or top).

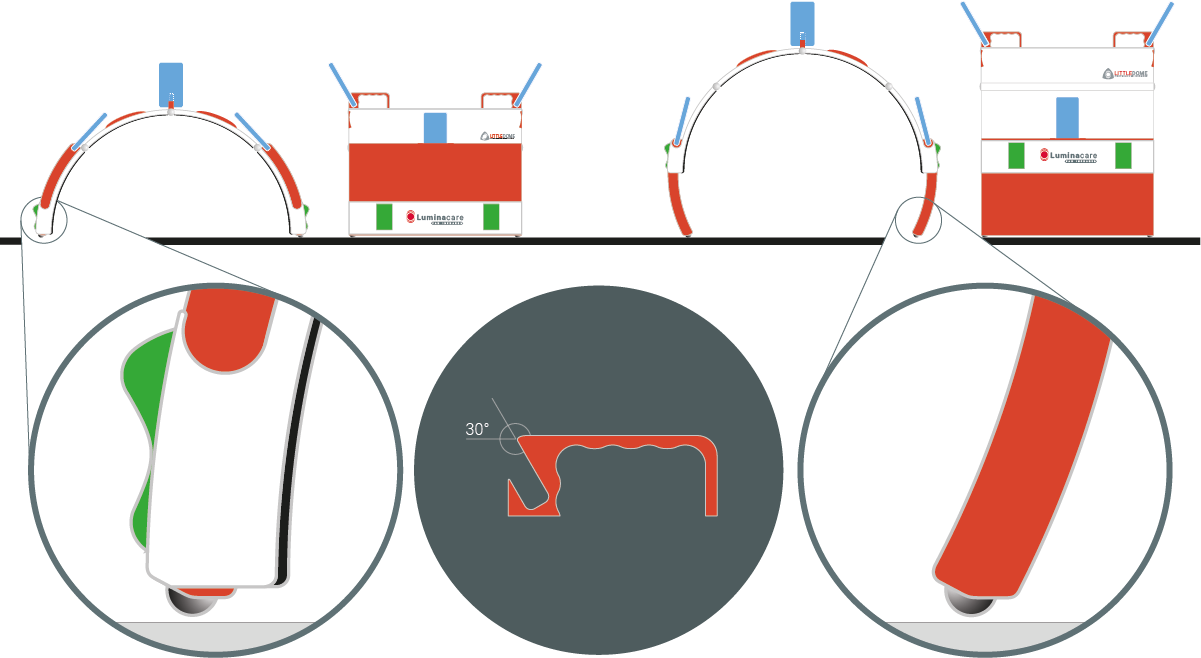

- Locking mechanism to secure the position of the retractable base. Two-stage mechanism, to be operated visually and by touch.
1.2. Storage and transport
The equipment has 3 hinges and can be folded to half its original size, facilitating storage and transport.
2. Equipment for applying far-infrared light to seated people
The application of far-infrared light involves the emission of some heat. In addition to the thermal sensation, some people, besides potentially having physical limitations, feel unwell in completely horizontal application chambers, so a version was created in which the person can remain seated.
2.1. Open and closed

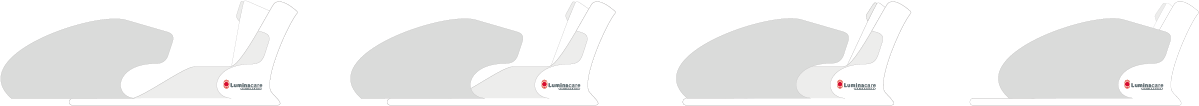

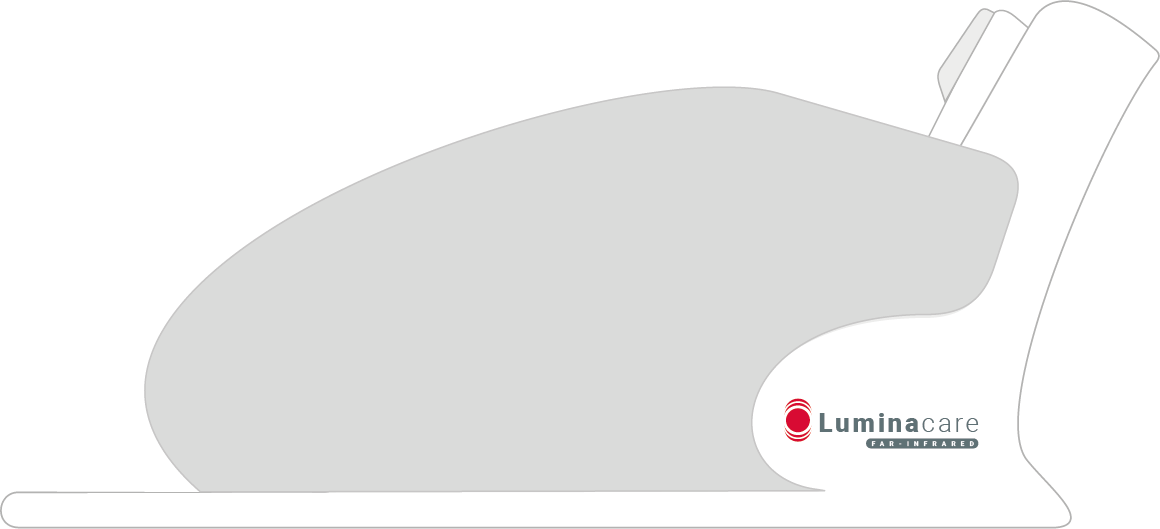

Visualization of the equipment when open and closed, as well as the change in the angle of the seat backrest.
3. Laser application
The flexibility of this equipment is an important requirement for it to reach hard-to-access areas of the human body, regardless of its position.
3.1. Arm positions

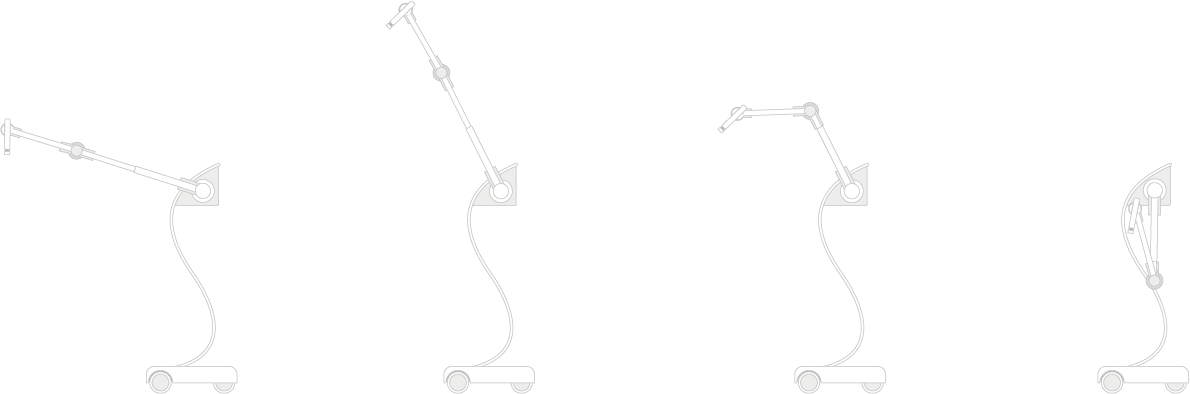

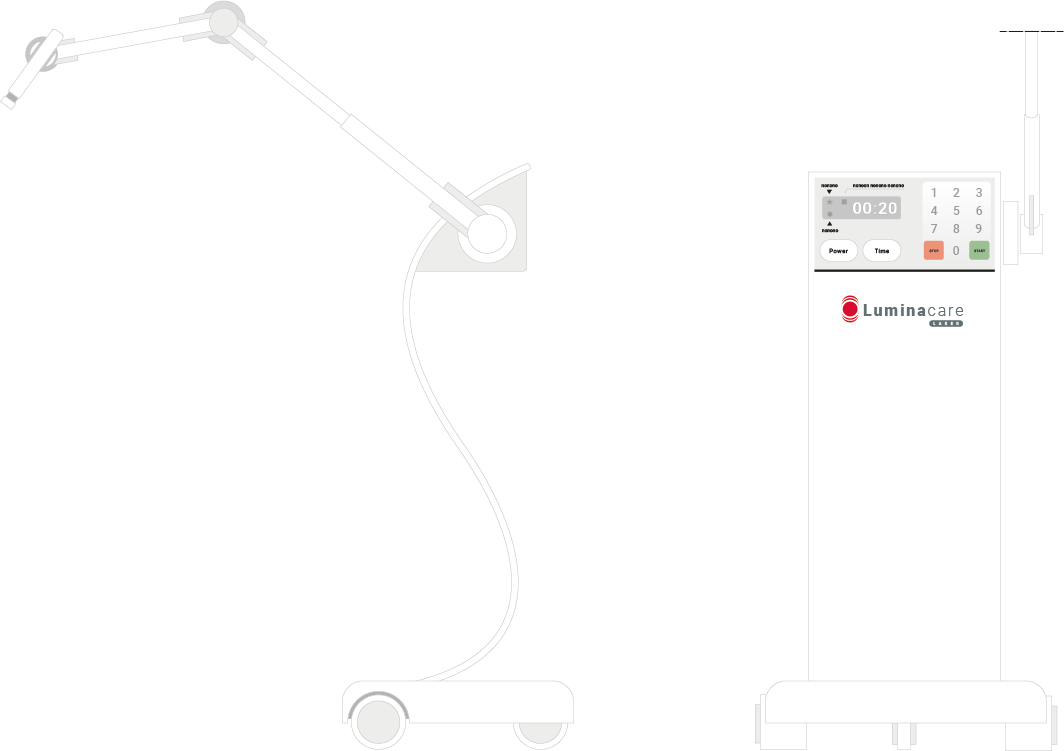

A telescopic and articulated arm ensures that the light reaches where it is needed.
